Draeger Pac 8500 | Single Gas Detector PAC 8500
Draeger Pac 8500 | Single Gas Detector PAC 8500

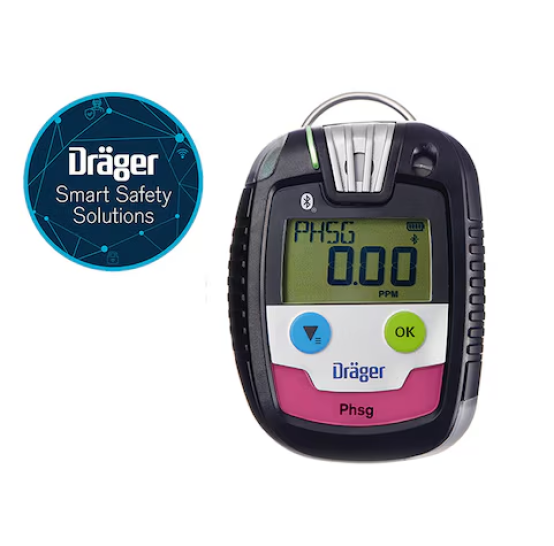

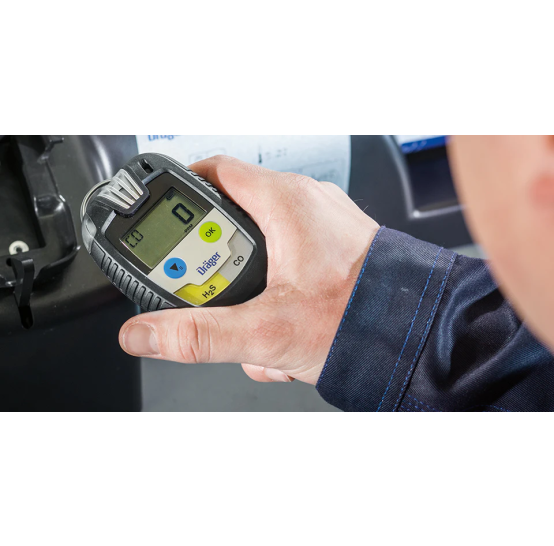

Single-Gas Detection Device
The Dräger Pac 8500 single-gas detection device is a reliable and precise instrument even under the toughest of conditions. The device can be equipped with a hydrogen-compensated CO sensor or a Dräger dual sensor. This gives you the option of measuring two gases at once: either H2S with CO or O2 with CO.

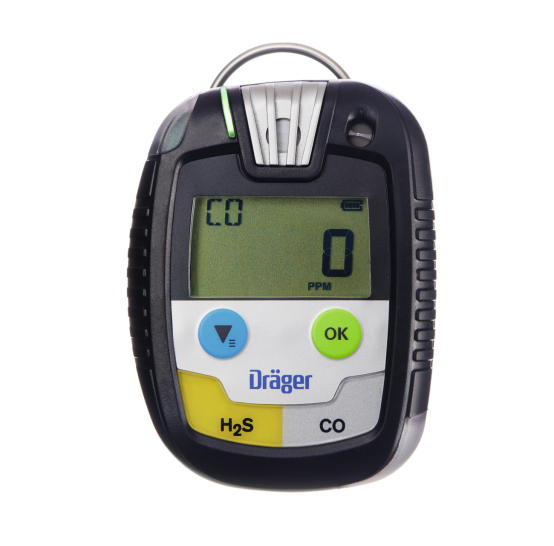

Convert to two-gas detection device using a dual sensor
Your single-gas detection device can become a two-gas device when a dual sensor is used. The Dräger Pac 8500 series offers the following sensor combinations: hydrogen sulphide with carbon monoxide or oxygen with carbon monoxide. Dual sensors enable detection of even low concentrations – and all in one and the same handy device. Measuring two gases at the same time reduces downtime as well. You can take vol.% measurements of oxygen and ppm measurements of carbon monoxide simultaneously using just one sensor.
-
Contact us
-
153
Technical Data
Dräger Pac 8500
Dimensions (without clip) (W x H x D) 64 x 84 x 20 mm
Weight Approx. 106 g (113 g with clip)
Battery service life 1 year (O2 sensors min. 10 months)
Protection class IP68
Air pressure 700 to 1,300 hPa
Air humidity 10 to 90% relative humidity, non-condensing
Temperature -30 °C to +55 °C
(briefly down to -40 °C for 1 hr, depending on sensor)
Approvals cCSAus, IECEx, ATEX, CE
Basic improvements:
- Battery lifetime 2 years with 24/7 (O2 1 year)
- Extended operating range -40°C
- Design changes (new, robust filter, display “remaining life”…)
- Use of existing accessories (X-dock, BumpTest Station, Cradle)
- Software improvements (Data logger/ PEAK value/ …)
New features:
- Sensors (CO-H2 CP/ Dual-Sensors/…)
- “D-Light” (Compliance Signal)
